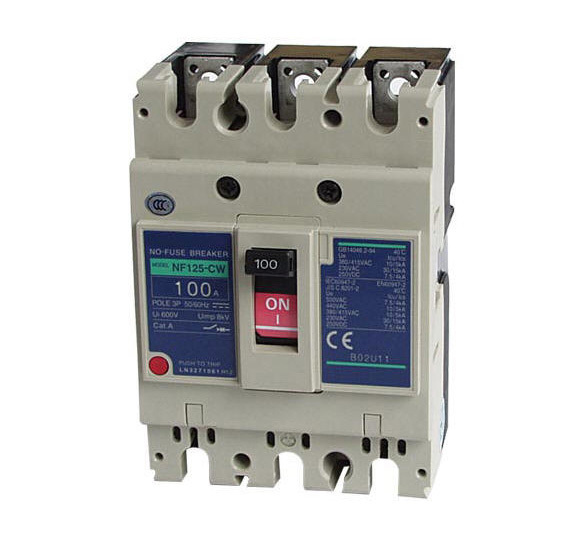

China made MCCB similar with Mitsubishi NF-CW MCCB moulded case electrical circuit breaker Air circuit Breaker

Description Place of Origin : China Brand Name : OEM brand Model Number : NF-CW Breaking Capacity : 10-85kA Rated Voltage : 690V Rated Current : 63A – 800A Poles Number : 2P, 3P, 4P Type : Moulded Case Application NF-CW series Moulded Case Circuit Breaker is a kind of economic breaker, has the features as following, such as steady and reliable property, reasonable structure, beautiful style, small volume, etc. This breaker applies to the circuit with AC50/60Hz, rated insulation voltage 660V, max rated current 800A as on-off operation, and take effect, it also can be used as unfrequent conversion of line and unfrequency. Specifications Type Polenumber Rated current (A) Circuit breaking capacity (KA) AC(P1/P2) 240 380 415 500 600 660 NF30-CW 2 3,5,10,15,20,30 5/5 5/2.5 2.5/1.5 2.5/1.0 – – 3 NF50-CW 3 10,20,30,40,50 5/10 10/7.5 7.5/5 7.5/5 2.5/1.5 – NF60-CW 3 10,20,30,40,50,60 5/10 10/7.5 7.5/5 7.5/5 2.5/1.5 – NF100-CW 3 60,75,100 50/42 30/20 7.5/5 15/10 10/5 5/2.5 4 NF250-CW 3 125,150,175,200,225,250 50/42 30/22 25/15 18/15 15/10 5/2.5 4 NF400-CW 3 250,300,350,400 85/60 50/35 25/20 35/25 25/18 15/10 4 NF630-CW 3 500,600,630 85/60 50/35 50/30 35/25 25/18 15/10 4 NF800-CW 3 600,700,800 85/60 50/35 50/30 35/25 25/18 15/10
