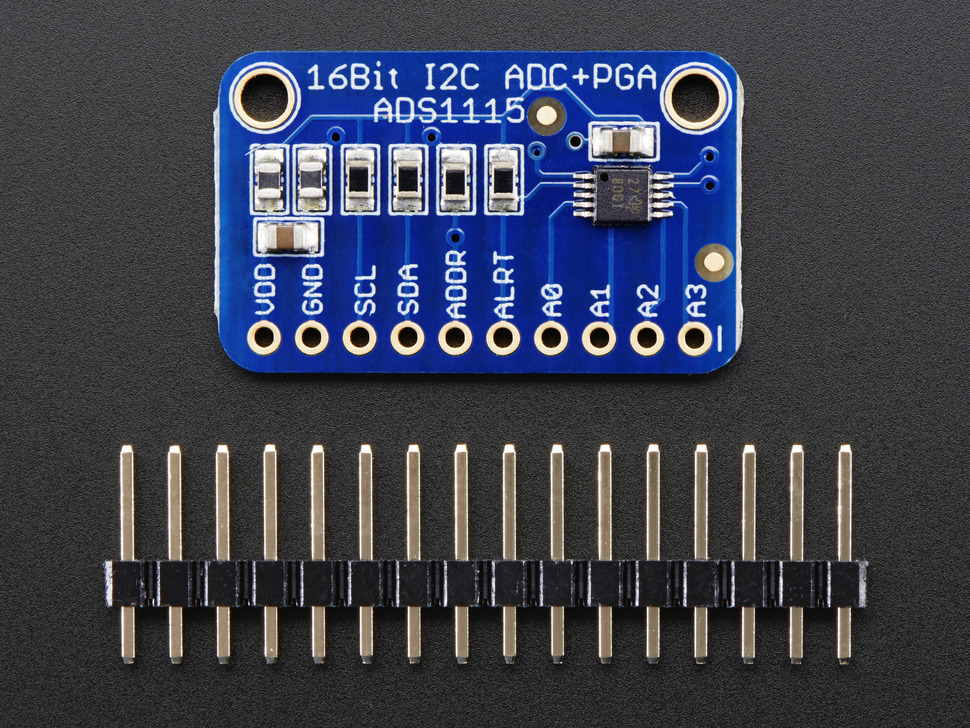

Wide Supply Range: 2.0v To 5.5v Low Current Consumption Continuous Mode: Only 150µa Single-shot Auto Shut-down Programmable Data Rate: 8SPS to 860SPS It has Internal low-drift voltage reference Description : ADS1115 16-Bit ADC – 4 Channel with Programmable Gain Amplifier is mostly used for microcontrollers project which needs an analog-to-digital converter or when you want a higher-precision ADC. ADS1115 16-Bit ADC- provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-end input channels or two differential channels. Pin Description : Features : WIDE SUPPLY RANGE: 2.0V to 5.5V PROGRAMMABLE DATA RATE: 8SPS to 860SPS It has an Internal low-drift voltage reference Internal Oscillator. Internal PGA. I2C INTERFACE : Pin-Selectable Addresses. Four single ends Or Two differential inputs. Programmable Comparator. This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers LOW CURRENT CONSUMPTION: Continuous Mode: Only 150µA Single-Shot Mode: Auto Shut-Down General Specification Operating Voltage (VDC) 2 ~ 5.5 PCB Size ( L x W ) mm 28 x 16 Weight (gm) 2 Shipment Weight 0.005 kg Shipment Dimensions
