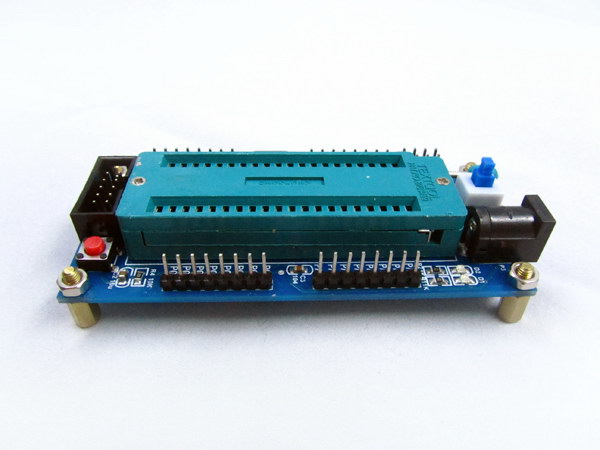

AVR ATMEGA 16 32 Min Dev. Board R2

Description Classical ATmega 16 minimum development board, get rid off the soldering troubles Good PCB technology, reasonable layout, stable performance Standard ISP download port, for online programming. Built-in crystal oscillator(11.0592M ) circuit, reset circuit, power indicator Crystal are replaceable All (32) the pins of chips are brought out  which are used to expand more functions. ATmega16/ATmega32 and all DIP-compatible chips(Please check the schematic if you want it to fit another AVR IC before you buy, Socket package is PDIP-40 Wide) Power supplier: Power 5.5mm Jack or pins, ISP power is not available Four extra channels of external power (VCC and GND) DC-005 Jack (5.5*2.1) Reset: Both power reset and button reset Power indicator and Programming working indicator Documentation: Read the schematic on this page.
